Arabirim Fast Ethernet (RJ-45) Port *1(Support Passive PoE)
Buton Reset
Güç Kaynağı 24VDC / 1A Passive PoE Supply
Güç Tüketimi 2.8W
Dimensions 7.56.81.2 in.
(189.4172.329.5mm)
Anten Tipi Internal 2* 3dBi Omni
Montaj Ceiling /Wall Mounting (Kits included)
KABLOSUZ ÖZELLİKLERİ
Kablosuz Standartlar IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frekans 2.4-2.4835GHz
Bağlantı Hızı 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Alıcı Hassasiyeti 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Kablosuz Fonksiyonlar Multiple SSIDs (Up to 8 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Kablosuz Güvenlik Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
İletim Gücü CE:
<20dBm
FCC:
<26dBm
YÖNETİM
Omada App Yes
Centralized Management • Omada Cloud-Based Controller
• Omada Hardware Controller (OC300)
• Omada Hardware Controller (OC200)
• Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes (Through OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller)
Eposta Uyarı Yes
LED Açık/Kapalı Kontrolü Yes
MAC Erişim Kontrolü Yönetimi Yes
SNMP v1,v2c
Yerel/Uzak Sistem Günlüğü Kaydı Local/Remote Syslog
Telnet Yes
SSH Yes
Web-tabanlı Yönetim HTTP/HTTPS
Management VLAN Yes
DİĞERLERİ
Sertifika CE, FCC, RoHS

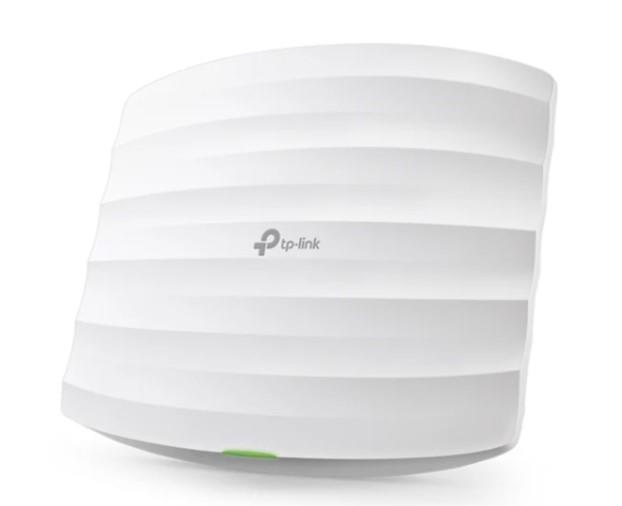

Paket İçeriği 300Mbps Wireless N Ceiling Mount Access Point EAP110
Passive PoE Adapter,
Power Cord,
Mounting Kits,
Installation Guide
Sistem Gereksinimleri Microsoft Windows 8/7/Vista/XP
Ortam Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
